IC BGA CSP Packaging Defect Inspection X-ray AX8300 UNICOMP Full CNC Automatic Scanning
The Unicomp AX8300 is a professional, purpose-built X-ray inspection system designed for high-precision non-destructive testing in PCBA, SMT and electronic component manufacturing. Featuring a proprietary 110kV micro-focus X-ray source, it perfectly fills the performance gap between conventional 90kV and 130kV X-ray devices, providing balanced penetration power to solve insufficient penetration of 90kV equipment and excessive energy waste of 130kV models.
Integrated with a high-end flat-panel detector (FPD), the AX8300 captures ultra-high-definition, high-magnification images with industry-leading fineness. Supported by a full 360° rotating worktable, the system enables flexible multi-angle observation and comprehensive detection of hidden defects.
Key Features
- 110kV Microfocus X-ray source
- High resolution Flat Panel Detector (FPD)
- X/Y/Z/Tilt Motions (table, tube, FPD)
- 360° Table Rotation
- Angle View up to 70 Degrees
- Point and Click Location Navigation
- CNC Programming for Multiple Image Inspection Routines
- Maximum Inspection Area: 360 x 340mm
Applications
BGA/CSP/FLIPS CHIP
- Bridging, Voids, Opens, Excessive/Insufficient solder
QFN
- Bridging, Voids, Opens, Registration
SMT Standard Components
- QFP, SOT, SOIC, Chips, Connectors, Others
Semiconductor
- Bond wire, Die attach VOID, MOLD, VOID
Multi-layer Board (MLB)
- Inner layer registration, PAD stack, Blind/buried vias
Technical Specifications
| Model |
AX8300 |
| Max kV/Type |
110 kV/Sealed |
| Power Consumption |
900W |
| Max. Electron Beam Power |
25W |
| Focal Spot Size |
5μm |
| Geometric Magnification |
48.8X |
| Imaging System (Option) |
Flat Panel Detector |
| Door Open |
Hand-operated door |
| Monitor |
27" HD 4K Display |
| Dimensions |
1215x1325x1700mm |
| Weight |
1350kg |
| Radiation Safety |
<1μSv/hr |
| Control |
Keyboard/Mouse/Joystick |
| Automated Inspection |
Standard |
| Primary Applications |
Chip inspection/Electronic components/Auto parts, etc. |
Note: Focal spot size is variable. Please consult Unicomp for specific requirements.
X-ray Safety Commitment
All x-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA-CDRH standard for cabinet x-ray systems states that radiation emissions will not exceed 0.5 millirem/hr at 2" from any external surface. Our machines typically emit 15 times less radiation.
Dimensions and Appearance

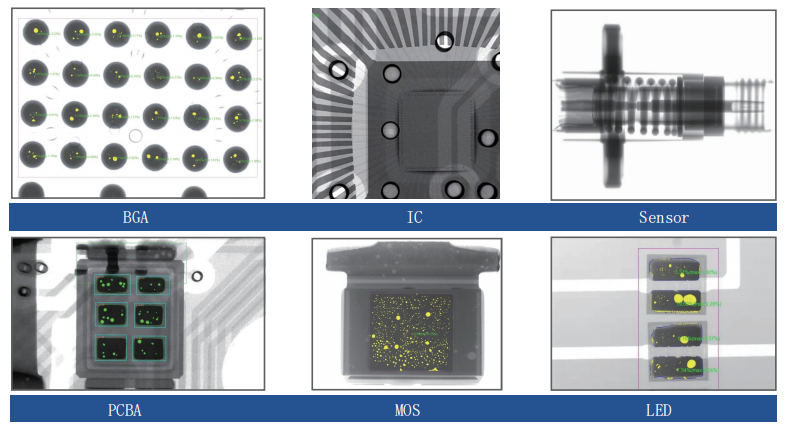

Inspection Images
